A strong and secure fixing point that's manufactured from hardened steel and coated with epoxy paint.
Case hardened steel ring making it highly resistant to cutting devices such as hacksaws and bolt croppers.
Can be installed with either bolt or screw fittings as the anchor has both counter sunk and flat holes.
Red epoxy coated finish making the product ideal for an array of conditions either indoors or outdoors.
Whilst every effort is taken to ensure all information, measurements and descriptions given on this website are correct, Equine Security cannot accept liability for their accuracy or content. In particular, given the tolerance associated with our products, all measurements should be considered approximate.
Material - Hardened Steel
Coating - Red Epoxy

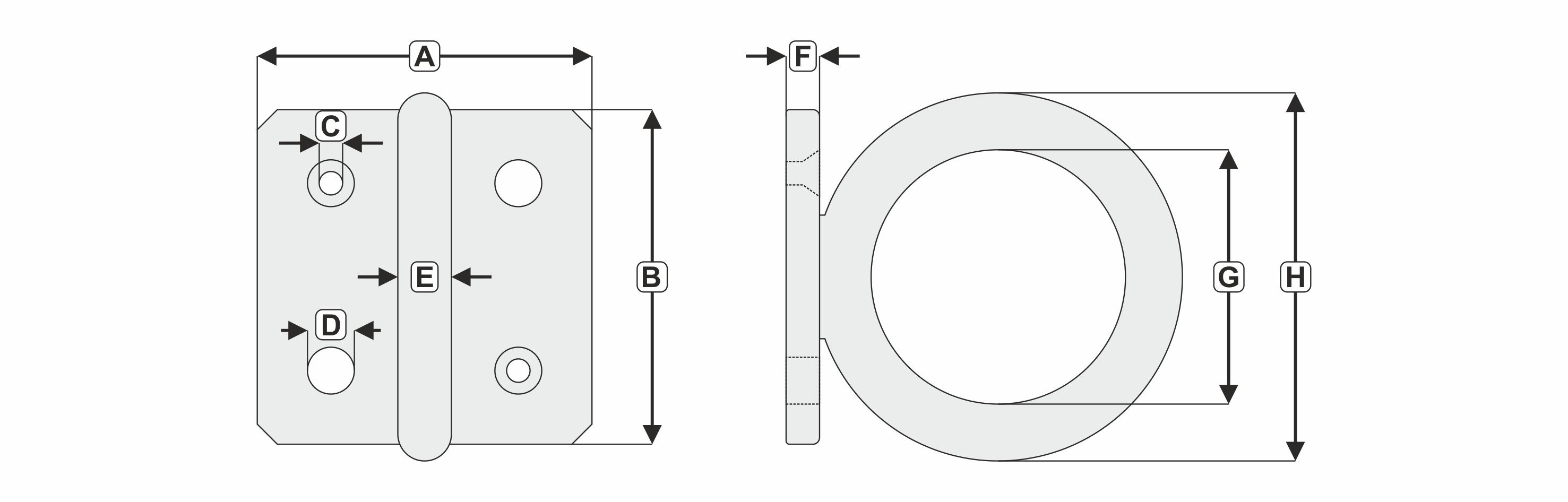

Code |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
AC-6817B00 |
80 |
80 |
6.5 |
12 |
16 |
5 |
52 |
84 |
